Ignite Spot Flood Beam LED Pod Light Backup Light SS-3050-25W

No.SS-3050-25W

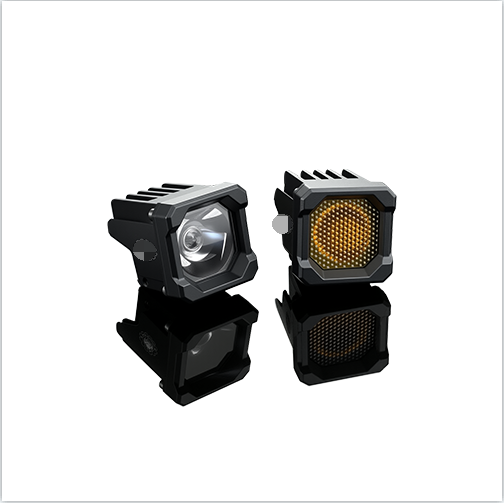

New & Popular led pod light which have Clear & Amber PC Lens For Select, Power 25 watt with 2,150 row Lumens, 9-32 Voltage.
  • Ignite Spot Flood Beam LED Pod Light Backup Light 25W
  • Ignite Spot Flood Beam LED Pod Light Backup Light 25W
  • Ignite Spot Flood Beam LED Pod Light Backup Light 25W
  • Ignite Spot Flood Beam LED Pod Light Backup Light 25W
  • Ignite Spot Flood Beam LED Pod Light Backup Light 25W

Description

SERIES:SS-3050-25W

Category Parameter Item Parameter Value
Product Features LED Model LangMingNaSi-25W
Product Features Luminous Flux 1530 LM
Product Features 4D Lens Color Clear, Yellow
Product Features Appearance Design White-Red, White, Amber
Product Features Beam Type Spot / Flood
Product Features Wiring & Plug Type Two/Four Wire DT Plug, Bare Wires Out

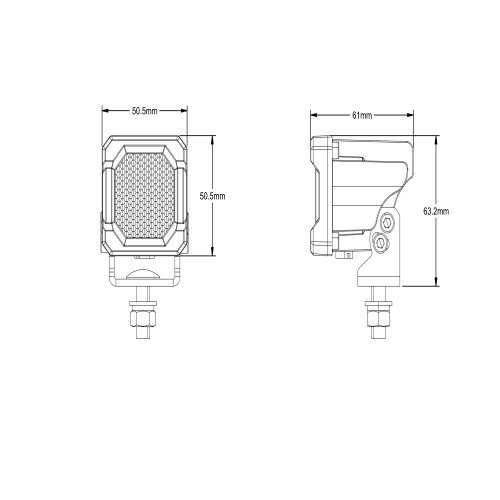

Product Features Product Size 50.5*50.5*61mm
Packaging Information Packaging Type White Box Package
Additional Product Characteristics Product Type & Power Consumption Compact LED Work Light, Low Power Consumption (25W)
Additional Product Characteristics Light Output >1350 Lumen
Additional Product Characteristics LED Service Life Single Power LED, Extremely Long Service Life
Additional Product Characteristics Lens & Illumination Performance Clear PC Lens, Excellent Close-Range Illumination
Additional Product Characteristics Voltage & Protection Functions Wide Voltage 9-33V, with Reverse Battery Protection and Over-Voltage Protection
Additional Product Characteristics Applicable Environment Suitable for Use Under Very Rough Conditions
Additional Product Characteristics Heat Dissipation Design Large Cooling Ribs on Housing Back for Optimized Heat Dissipation
Additional Product Characteristics Material Die-Cast Aluminum Housing, Stainless Steel Bracket, PMMA Lens
Product Features Service Life ≥30000 Hours
Product Features Certifications CE, RoHs, IP68
Packaging Information Quantity per Carton (Q'TY) 20PCS/CTN


Operational Lumens Output 1530lm Vibration
Colour Temperature 6000-6500 K Lens PC
Norminal Voltage DC 12 - 24 V Body/Housing Aluminum
Input Voltage DC 9 - 32 V Weight 198g
Power Consumption 25W IP Rating IP68
Nominal Current at 24V=1.0A,12V=2.0A Salt Sprary Test ISO 9227 240H
Connector Built-in Deutsch DT-2(2-pin) EMC E8 10R-0617152 Class 5 / Class 3 (For Select)
Mount Bottom Mount Operating Temperatures -40℃...+85℃(Full Power -40℃... +50℃)
Shock 60G Part Numbers
