| Category | Parameter Item | Parameter Content |
|---|---|---|
| Specification | LED Chips | 3W LED Chips |
| Specification | Material | Aluminum |
| Specification | Voltage | 9-36V |
| Specification | Mount | Bottom Mount |
| Specification | Beam Pattern | Flood |

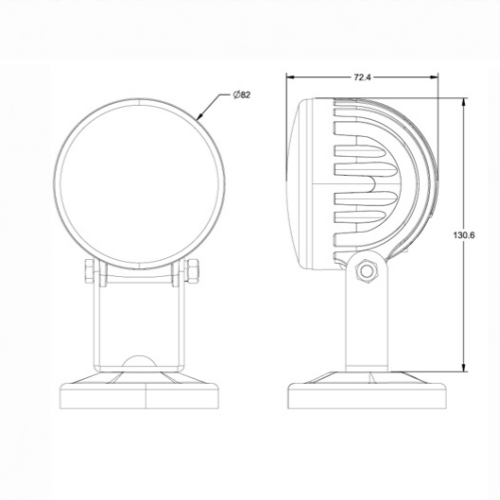

| Parameter | Size | 82*72.4MM |
| Parameter | Lumen | 1050Lm |
| Parameter | Power | 12W |
| Parameter | Color | White |
| Specification | Waterproof | IP68 |
| Specification | Certificate | CE/ROHS |
| Operational Lumens Output | 1050lm | Vibration | ||
| Colour Temperature | 6000-6500 K | Lens | PC | |
| Norminal Voltage DC | 12 - 24 V | Body/Housing | Aluminum | |
| Input Voltage DC | 9 - 32 V | Weight | g | |
| Power Consumption | 12W | IP Rating | IP68 | |
| Nominal Current at | 24V=0.5A,12V=1.0A | Salt Sprary Test | ISO 9227 240H | |
| Connector | Built-in Deutsch DT-2(2-pin) | EMC | E8 10R-0617152 Class 5 / Class 3 (For Select) | |
| Mount | Bottom Mount | Operating Temperatures | -40℃...+85℃（Full Power -40℃... +50℃） | |
| Shock | 60G | Part Numbers |
